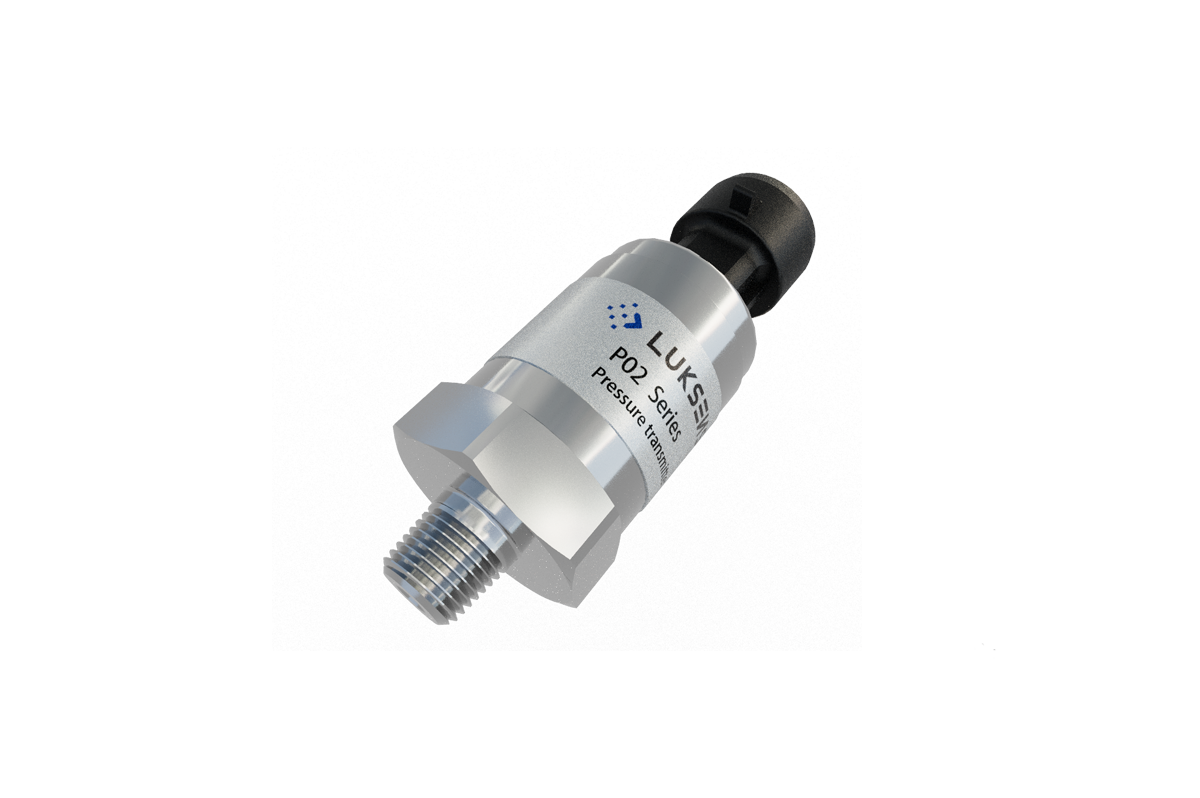

P02 series piezoresistive pressure transmitter

P02 series piezoresistive pressure transmitter

The P02 series pressure transmitter for almost all industries applications that provide reliable pressure even in extreme environments measurement results.
The pressure transmitter combines the latest Application Specific Integrated Circuit (ASIC) and Oil-Filled piezoresistive technology, provides flexible output signals, absolute or relative (gauge) versions with measurement ranges from 0–1 to 0–100 bar. A wide variety of pressure and electrical connections are available.


Parameter & Feature：

  • Pressure Range: 0 ... 100 bar, which can be customized
  • Technology: Oil-Filled piezoresistive technology
  • Mount: Process connectors (Threaded connections: G1/8"A male, G1/4"A male, 1/8"-27 NPT male, 1/4"-18 NPT male, 7/16"-20 UNF, R1/8"A male, R1/4"A male, M20*1.5 male)
  • Power supply: 5 ± 0.25 VDC (for Ratiometric output) or 12 ... 30 VDC (for Regulated voltage and current outputs)
  • Output: 0-10 VDC, 14 to 30 VDC|0.5-4.5 VDC ratio, 5V|1-5 VDC, 12 to 30 VDC|4-20 mA, 12 to 30 VDC
  • Accuracy: 0.5 % FS (including linearity, hysteresis, and repeatability errors)
  • Response time: 5 ms
  • Operating temperature range: -40 °C ... 125 °C
  • Range can be customized
  • High vibration stability, high durability, Compatible for nearly all aggressive media



Suitable for the following:

  • Process control
  • Environmental control
  • Meters and instruments
  • Medical instrument
