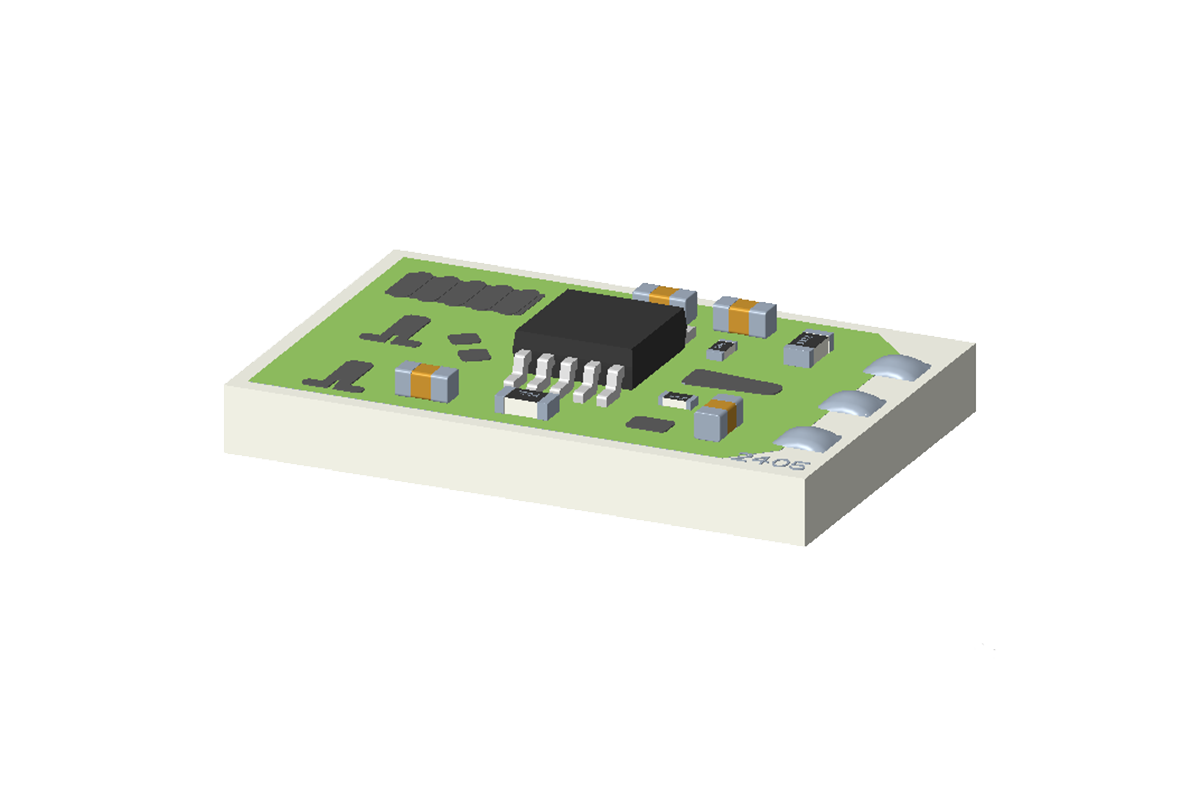

PSRT series piezoresistive ceramic pressure transducer
The PSRT piezoresistive monolithic ceramic pressure sensors are specifically optimized for battery-powered applications like smart water metering. Featuring a digital I2C output, <2 mA current consumption, and MCU sleep mode support, they ensure an operational lifetime of over 10 years.
Integrated ASIC electronics handle internal pressure and temperature calibration, delivering precise offset and span corrections. Crucially, a specialized mechanical design minimizes assembly stress, completely eliminating the need for post-installation zero-point calibration and significantly streamlining your manufacturing process.
Fully EMC-compliant, the sensors offer exceptional long-term stability, include an EEPROM for traceability, and utilize Al2O3 ceramic for excellent resistance to aggressive media.
Parameter & Feature：
- Pressure Range: 0 ... 16 bar
- Technology: Piezoresistive ceramic principle (Monolithic ceramic cell with Wheatstone bridge screen-printed using thick-film technology and integrated ASIC signal conditioning)
- Mount: Flange mount
- connections: Termination Types (Pre-tinned pads, 50.8 mm Wires, Socket)
- Power supply:
（1）5 ± 0.25 VDC (for Ratiometric outputs)
（2）2.7 ... 5.5 VDC (Typ. 3.3 VDC for Digital I²C output)
- Output: 0.5–4.5 VDC、0.5–2.5 VDC or Digital I²C output (16-bit resolution, supports MCU sleep mode)
- High accuracy in full temperature range:
（1）±0.5% FS in the range of 25 °C
（2）Total Error Band (TEB @ 5 °C ... 85 °C): ± 2.0% FS
- Response time:
（1）Analog: < 1 ms
（2）Digital I²C: Typ. 3 ms, Max. 6 ms
- Operating temperature range: -20 °C…85 °C
- Range can be customized
- High vibration stability, high durability, Compatible for nearly all aggressive media
Suitable for the following:
- Domestic appliances
- Medical and instrumentation
- Water supply and drainage systems
- Smart meters and battery-powered devices
