INTEGRATED CURRENT SENSORS

Redefining high-frequency power sensing with up to 2 MHz bandwidth, 5 kVrms isolation, and ultra-low conductor resistance. Optimized for SiC/GaN topologies, these SMT sensors feature integrated Over-Current Detection and robust differential noise immunity to deliver maximum efficiency with zero compromise.

C08 Series


  • Factory trimmed sensitivity sensor

  • Superior temperature stability and linearity

  • Compact size for applications with limited space

  • SOIC8 Standard package and small footprint

Main features

  • Measuring range: 5 - 50A

  • 1% accuracy at 25°C

  • Isolation: 3kVrms

  • 5V or 3.3V flexible supply voltage

  • Fast response up to 0.2μs, minimal noise output

  • Ultra-high bandwidth up to 2 MHz (-3dB)

More Options：

C10 Series

  • Factory trimmed sensitivity sensor

  • Primary conductor resistance is only 0.2mΩ

  • Superior temperature stability and linearity

  • Compact size for applications with limited space

  • SOW10 mount

Main features

  • Measuring range: 50 - 250A

  • 1% accuracy at 25°C

  • Isolation: 5kVrms​

  • 5V supply voltage

  • Fast response up to 0.3μs, minimal noise output

  • Ultra-high bandwidth of 400kHz or 2 MHz (-3dB)


More Options：

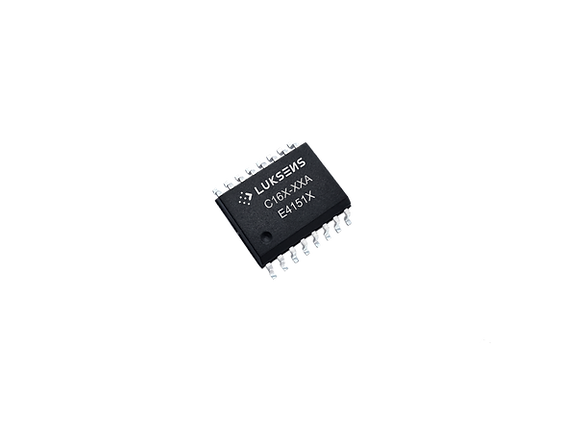

C16 Series


  • Factory trimmed sensitivity sensor

  • Primary conductor resistance is only 0.47mΩ

  • Superior temperature stability and linearity

  • Compact size for applications with limited space

  • SOW16 mount

Main features

  • Measuring range: 10 - 100A

  • 1% accuracy at 25°C

  • Isolation: 5kVrms

  • Flexible supply voltage with factory selectable 5V

  • Fast response up to 0.3μs, minimal noise output

  • Ultra-high bandwidth of 400kHz or 2 MHz (-3dB)

More Options：
